Wood/Stone Bucket Grapple

Wood/Stone et Grapple

Wechat consulting

Consult now 0536-3261931 返回

Details

Product feature:
(1) Diversification: Two designs are available for selection according to your requirements.
(The non-hydraulic rotatory grapple is connected by oil circuit of digger et oil cylinder, without the extra hydraulic pipe and hydraulic valve, is easy to stall and use. A set of hydraulic valve and pipeline are needed for the rotatory one to control, and the angel is adjustable according to engineering needs).
(2) The hydraulic wood grapple is equipped with protective device to ensure safe and convenient operation.
(3) Progress with special steel to make operation easy.
(4) The relief valve is embedded to prevent the oil cylinder from naturally dropping.
(5) The large capacity of oil cylinder is designed to increase the grasping power of the equipment.
(6) The key parts are all imported from Europe and USA, making it more simple and secure.

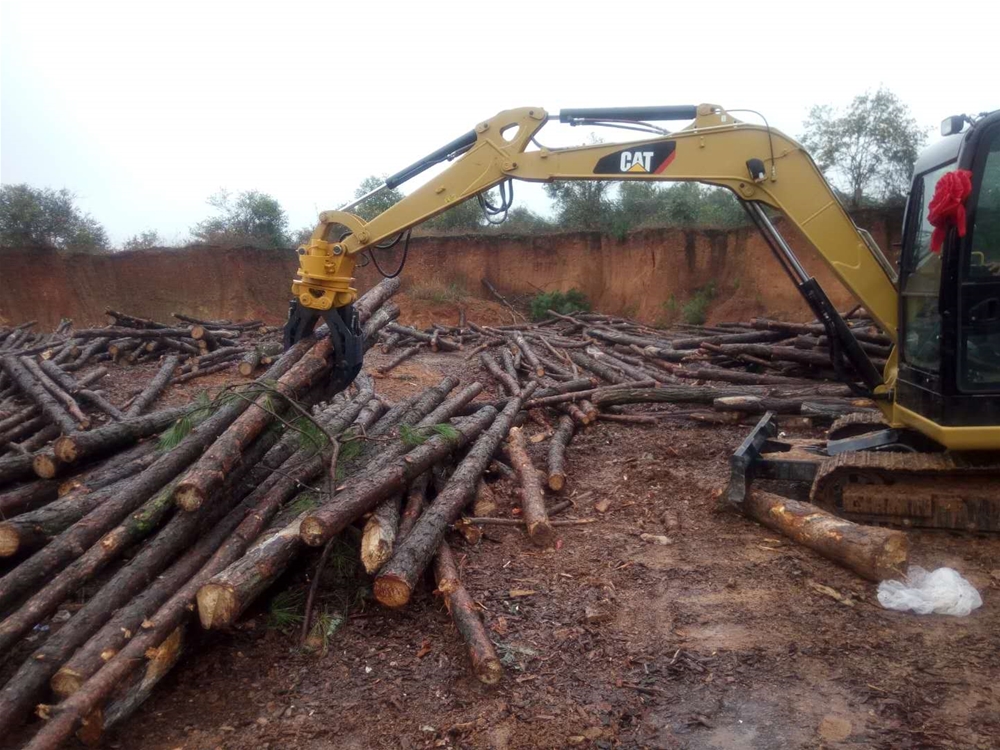

(7) It is used for unloading and carrying of wood, stone, reed, straw, waste and etc.

型号Model	Unit	JXZM 03	JXZM 04	JXZM 06	JXZM 08	JXZM 10	JXZM 14	JXZM 20
重量 Weight	Kg	320	390	740	1380	1700	1900	2100
开口尺寸 Jaw opening	M/m	1300	1400	1800	2300	2500	2500	2700
工作压力Working pressure	Kg/cm2	110-140	120-160	150-170	160-180	160-180	180-220	180-200
设定压力Setting pressure	Kg/cm2	170	180	190	200	210	250	250
工作流量 Operating flux	L/min	30-55	50-100	90-110	100-140	130-170	200-250	250-320
油缸容量Cylinder capacity	Ton	4.0*2	4.5*2	8.0*2	9.7*2	12*2	12*2	14*2
适配挖机Suitable excavator	Ton	4-6	7-11	12-16	17-23	24-30	31-40	41-50
